Model No: MCV0398

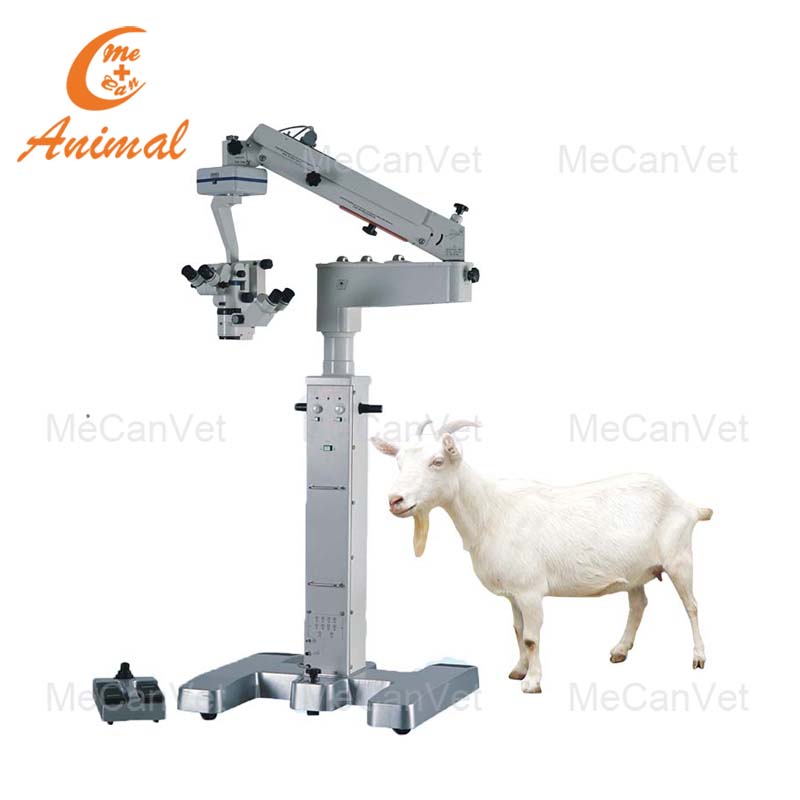

Veterinary Ophthalmic Surgical Microscope
MeCan Vet ophthalmology surgery microscope that is also suitable as a veterinary operating microscope for ophthalmic procedures.
Quantity :
Portable Veterinary Surgical Microscope
Model: MCV0398
Veterinary Ophthalmic Surgical Microscope Description:
The Veterinary Ophthalmic Surgical Microscope is a high-quality instrument designed for ophthalmic surgeries in the veterinary field. It offers a range of features to ensure precise visualization and operation during surgical procedures.
The Veterinary Ophthalmic Surgical Microscope is a high-quality instrument designed for ophthalmic surgeries in the veterinary field. It offers a range of features to ensure precise visualization and operation during surgical procedures.
Veterinary Ophthalmic Surgical Microscope Highlights:
Motorized zoom system for versatile magnification.
Coaxial illumination with adjustable light intensity.
Tiltable binocular tube and adjustable pupil distance for user comfort.
Motorized zoom system for versatile magnification.
Coaxial illumination with adjustable light intensity.
Tiltable binocular tube and adjustable pupil distance for user comfort.
Veterinary Ophthalmic Surgical Microscope Features:
Magnification and Focusing:
The microscope has a motorized zoom system with a 1:6 zoom ratio, providing a magnification range of 4.5x - 27x.
The focusing range is 50mm, allowing for precise focusing on the surgical area.
Optical Components:
The binocular tube is 30° - 90° tiltable (with 0° - 200° optional), and the eyepiece options are 12.5x / 10x.
The objective lens is F 200mm (with 175mm, 250mm, 300mm optional), and the pupil distance can be adjusted from 55mm - 75mm. The diopter adjustment range is +6D - -6D, and the field of view varies from Φ44 - Φ7.7mm.
Illumination System:
It features coaxial illumination with a 12V/100W Halogen Lamp as the light source. The light intensity can be continuously adjusted from 0 - 100000lux, and there is a built-in retinal protection device. The fiber optic illumination is dual fiber, and the field of illumination is Φ50mm with an adjustable red reflex.
Arm & Base:
The microscope is mounted on a floor stand. The maximum arm extension is 1200mm, and the height from the objective to the floor is 800mm. The base size is 800 * 800mm, and it has a four-wheel brake system. The foot switch is waterproof and has 8 function steps.
Accessories:
It includes a CCD Camera system (beam splitter, CCD adapter, CCD, Display), a BIOM system (invertor, Holder, 90D lens, 130D lens), and an Integrated Video Adapter (compatible with SONY / CANON Camera).
Power and Safety:
The power socket can accept 220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ, and the power consumption is 300W. The safety class is class I.
Ambient Conditions:
The microscope can be used in an environment with a temperature range of +10°C to +40°C (+50°F to +104°F), 30% to 75% relative humidity, and 500 mbar to 1060 mbar atmospheric pressure. It can be stored in an environment with a temperature range of –30°C to +70°C (–22°F to +158°F), 10% to 100% relative humidity, and 500 mbar to 1060 mbar atmospheric pressure.
Magnification and Focusing:
The microscope has a motorized zoom system with a 1:6 zoom ratio, providing a magnification range of 4.5x - 27x.
The focusing range is 50mm, allowing for precise focusing on the surgical area.
Optical Components:
The binocular tube is 30° - 90° tiltable (with 0° - 200° optional), and the eyepiece options are 12.5x / 10x.
The objective lens is F 200mm (with 175mm, 250mm, 300mm optional), and the pupil distance can be adjusted from 55mm - 75mm. The diopter adjustment range is +6D - -6D, and the field of view varies from Φ44 - Φ7.7mm.
Illumination System:
It features coaxial illumination with a 12V/100W Halogen Lamp as the light source. The light intensity can be continuously adjusted from 0 - 100000lux, and there is a built-in retinal protection device. The fiber optic illumination is dual fiber, and the field of illumination is Φ50mm with an adjustable red reflex.
Arm & Base:
The microscope is mounted on a floor stand. The maximum arm extension is 1200mm, and the height from the objective to the floor is 800mm. The base size is 800 * 800mm, and it has a four-wheel brake system. The foot switch is waterproof and has 8 function steps.
Accessories:
It includes a CCD Camera system (beam splitter, CCD adapter, CCD, Display), a BIOM system (invertor, Holder, 90D lens, 130D lens), and an Integrated Video Adapter (compatible with SONY / CANON Camera).
Power and Safety:
The power socket can accept 220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ, and the power consumption is 300W. The safety class is class I.
Ambient Conditions:
The microscope can be used in an environment with a temperature range of +10°C to +40°C (+50°F to +104°F), 30% to 75% relative humidity, and 500 mbar to 1060 mbar atmospheric pressure. It can be stored in an environment with a temperature range of –30°C to +70°C (–22°F to +158°F), 10% to 100% relative humidity, and 500 mbar to 1060 mbar atmospheric pressure.
Veterinary Ophthalmic Surgical Microscope Application:
Used in veterinary ophthalmic surgeries for procedures such as cataract removal, corneal surgeries, and other eye-related operations.
Used in veterinary ophthalmic surgeries for procedures such as cataract removal, corneal surgeries, and other eye-related operations.
