Model No: MCV0399

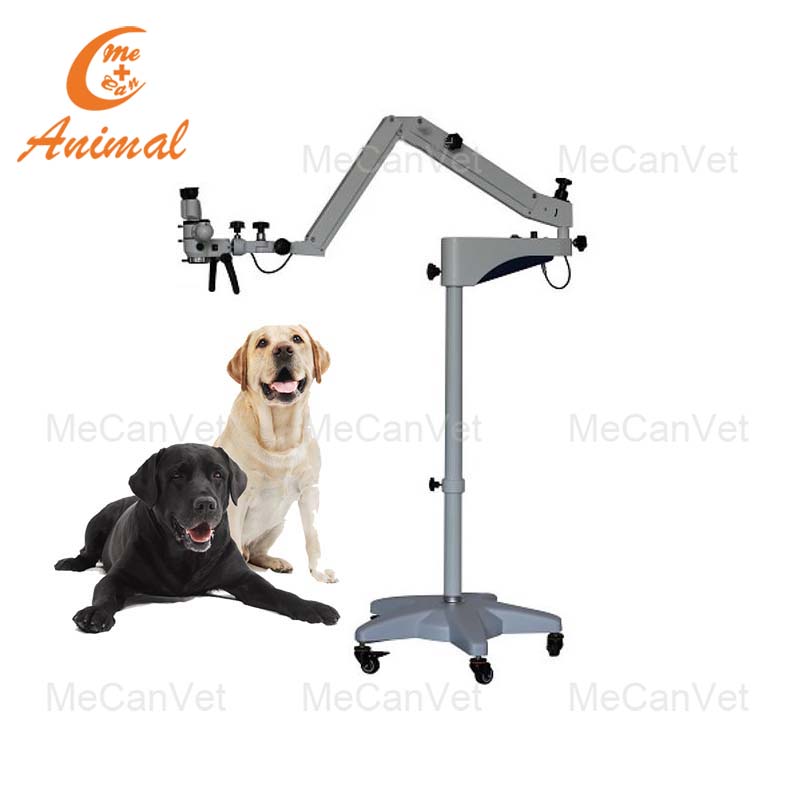

Portable Veterinary Surgical Microscope
The Portable Veterinary Surgical Microscope is a versatile instrument suitable for various surgical applications, including dentistry, orthopaedics, and general operations in the veterinary field. It offers a range of features to assist in precise surgical procedures.
Quantity :
Portable Veterinary Surgical Microscope
Model: MCV0399
Portable Veterinary Surgical Microscope Description:
The Portable Veterinary Surgical Microscope is a versatile instrument suitable for various surgical applications, including dentistry, orthopaedics, and general operations in the veterinary field. It offers a range of features to assist in precise surgical procedures.
The Portable Veterinary Surgical Microscope is a versatile instrument suitable for various surgical applications, including dentistry, orthopaedics, and general operations in the veterinary field. It offers a range of features to assist in precise surgical procedures.
Portable Veterinary Surgical Microscope Highlights:
Versatile application in different veterinary surgical fields.
Adjustable magnification and illumination for better visualization.
Portable design with a floor stand for easy movement.
Versatile application in different veterinary surgical fields.
Adjustable magnification and illumination for better visualization.
Portable design with a floor stand for easy movement.
Portable Veterinary Surgical Microscope Features:
Observation Tube and Magnification:
The observation tube is inclined at 45 degrees for comfortable viewing.
Offers magnification steps of 0.6X, 1X, 1.6X, resulting in a total magnification range of 2.4X - 12X, allowing for detailed examination of surgical sites.
The field of view varies from 16mm - 81mm depending on the magnification.
Observation Tube and Magnification:
The observation tube is inclined at 45 degrees for comfortable viewing.
Offers magnification steps of 0.6X, 1X, 1.6X, resulting in a total magnification range of 2.4X - 12X, allowing for detailed examination of surgical sites.
The field of view varies from 16mm - 81mm depending on the magnification.
Optical Adjustments:
The range of pupillary distance is 50mm - 80mm, and the range of diopter is >±5D, enabling customization for different users' eyesight.
The objective lens comes in standard options of F = 200mm & F = 250mm, with additional options of F = 300mm & F = 400mm available.
The range of pupillary distance is 50mm - 80mm, and the range of diopter is >±5D, enabling customization for different users' eyesight.
The objective lens comes in standard options of F = 200mm & F = 250mm, with additional options of F = 300mm & F = 400mm available.
Illumination and Filter:
Equipped with a 10W LED coaxial illuminator with brightness adjustment, providing an intensity >40000LX for clear visualization of the surgical area.
Features an integrated green and orange filter to enhance the visibility of different tissues.
Equipped with a 10W LED coaxial illuminator with brightness adjustment, providing an intensity >40000LX for clear visualization of the surgical area.
Features an integrated green and orange filter to enhance the visibility of different tissues.
Balance Arm and Floor Stand:
The balance arm is a 2 - part arm with a universal joint, allowing for flexible positioning of the microscope.
The floor stand consists of a 2 - part column and a 5 - star base with wheels, making it easily mobile for use in different locations within a veterinary clinic or surgical suite.
The balance arm is a 2 - part arm with a universal joint, allowing for flexible positioning of the microscope.
The floor stand consists of a 2 - part column and a 5 - star base with wheels, making it easily mobile for use in different locations within a veterinary clinic or surgical suite.
Power Supply:
Powered by a 36W high - quality adapter of an international brand, ensuring reliable power and increasing security during operation.
Powered by a 36W high - quality adapter of an international brand, ensuring reliable power and increasing security during operation.
Weight and Packaging:
The total gross weight is 59KG, with 1 set packaged in 2 cartons in a compact manner for easy storage and transportation.
The total gross weight is 59KG, with 1 set packaged in 2 cartons in a compact manner for easy storage and transportation.
Portable Veterinary Surgical Microscope Application:
Used in veterinary dentistry for procedures such as tooth extraction or root canal treatment.
In orthopaedics, it aids in surgeries related to bones and joints of animals.
For general operations, it provides detailed visualization for various surgical procedures.
Used in veterinary dentistry for procedures such as tooth extraction or root canal treatment.
In orthopaedics, it aids in surgeries related to bones and joints of animals.
For general operations, it provides detailed visualization for various surgical procedures.
