One-Stop Veterinary Clinic Setup Guide: Imaging, Surgery, Lab and Recovery

Building or expanding a veterinary clinic can become difficult long before the first patient arrives. You need imaging systems, surgical equipment, anesthesia support, laboratory analyzers, recovery cages, and many other clinical tools.



Problems begin when you source each product through separate vendors. Delivery dates may clash, technical specifications may differ, and no supplier may take responsibility for the full project.

A strong veterinary clinic setup needs more than quality equipment. It needs a practical plan that connects each clinical area. Imaging, surgery, laboratory work, and recovery should support one clear patient path across the clinic.

A one-stop veterinary equipment solution helps you plan those areas as one complete system. You can coordinate equipment choices, room layout, delivery, installation, and technical support through one supplier.

Redefining the Veterinary Clinic Setup: The Power of Spatial Workflow

Your clinic layout affects each patient, each staff member, and each clinical decision. A poor layout can force staff to carry an unstable patient across crowded rooms. It can also create noise, delays, and unnecessary contact between anxious animals. In contrast, a clear patient route helps your team act faster and keeps each area calm.

Fear-free design deserves attention at the planning stage. AAHA guidance notes that 10% of puppies who show fear during an examination at 8 weeks still show fear at 18 months.

You should plan a direct patient route before you choose equipment:

• Reception to triage for initial assessment and vital signs
• Triage to the lab for blood tests before anesthesia or urgent treatment
• Lab to imaging when the veterinarian needs rapid internal assessment
• Imaging to surgery after the clinical team confirms the treatment plan
• Surgery to recovery for close observation, oxygen support, fluid therapy, and temperature control

A well-planned veterinary hospital setup also protects your budget. One recent veterinary construction case showed how a 15% rise in material costs contributed to a total project overrun of 30%.

A practical turnkey veterinary clinic solution links your physical layout with your equipment list. Your X-ray system, anesthesia machine, laboratory analyzers, surgical table, and ICU cages must support one patient path.

Core Functional Zones: Maximizing Practical Equipment Pairing

Core functional zones only work when each device supports one clear patient route. You should decide how your team will use every equipment pair before you approve the product list or final floor plan.

The table below gives you a clear overview of the main clinic zones, the equipment each area needs, and how those devices support daily patient care.

Functional Zone	Core Equipment	Workflow Role
Diagnostic Imaging	Vet DR X-Ray, Vet Ultrasound Systems	Fast pre-surgical diagnosis
Surgery & Anesthesia	Anesthesia Machine, Patient Monitor, Surgical Table, Surgical Lights	Safe anesthesia and vital checks
Clinical Laboratory	Hematology Analyzer, Biochemistry Analyzer	Rapid blood tests before treatment
Recovery & Wards	Vet ICU Cages, Infusion/Syringe Pumps, Oxygen Concentrators	Controlled recovery, fluids, and oxygen support

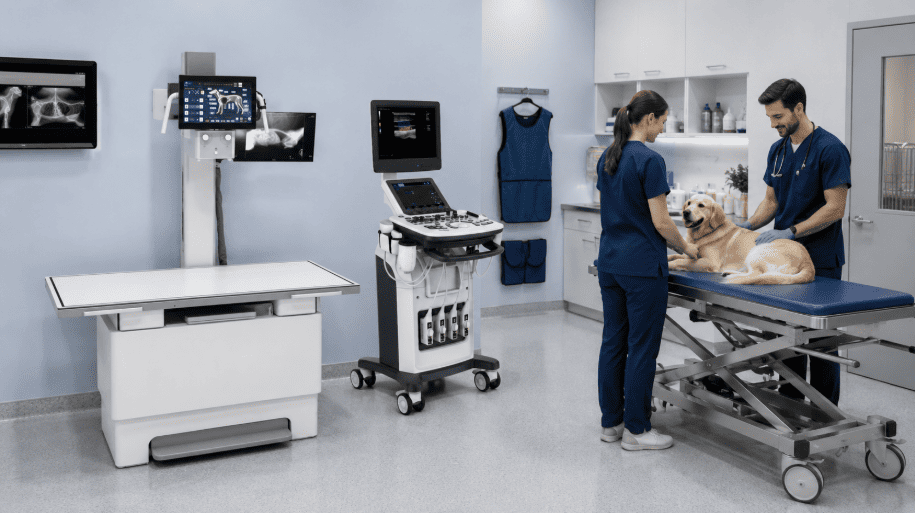

1. The Diagnostic Imaging Zone

An emergency patient cannot move back and forth across the clinic without risk. You need your X-ray and ultrasound equipment close together, ideally in the same imaging suite or in connected rooms with a clear transfer path.

Veterinary imaging equipment gives your veterinarian two different views of the same problem. A digital X-ray unit can show fractures, chest changes, abdominal gas patterns, and foreign bodies.

You should place the DR X-ray table near the ultrasound cart. This setup lets your technician move the patient only once, then support the vet through both tests. A 17 × 17-inch detector can suit many medium and large dogs, while a 14 × 17-inch detector can work well in smaller clinics.

A microconvex probe with a 3.5 to 5 MHz range supports abdominal and emergency scans. A linear probe in the 7.5 to 12 MHz range gives better detail for superficial tissue, tendons, and small structures.

Key equipment pairing should include:

• A digital X-ray generator, detector, workstation, and protective lead apparel.
• A veterinary ultrasound machine on a mobile cart with at least two probes.
• A patient trolley or stretcher that fits through the imaging-room door.
• A wall-mounted viewing screen that the veterinarian can see without leaving the patient.

When planning your clinic's budget, the diagnostic imaging suite represents one of your largest initial outlays. However, many clinic owners make the mistake of shopping for standalone machines rather than planning a Total Suite Budget Allocation.

A successful imaging room requires a balance between the equipment itself and structural site preparation. Investing in an advanced X-ray system yields little ROI if your facility lacks the proper infrastructure.

When budgeting for this zone, investors must look beyond the machines and concurrently allocate funds for:

• Radiation shielding compliance and certified lead apparel.
• Heavy-duty electrical lines capable of handling generator power surges.
• Professional calibration and remote software synchronization.

A unified procurement approach ensures that your infrastructure costs and advanced diagnostic modalities are budgeted together as a single, fully compatible financial package.

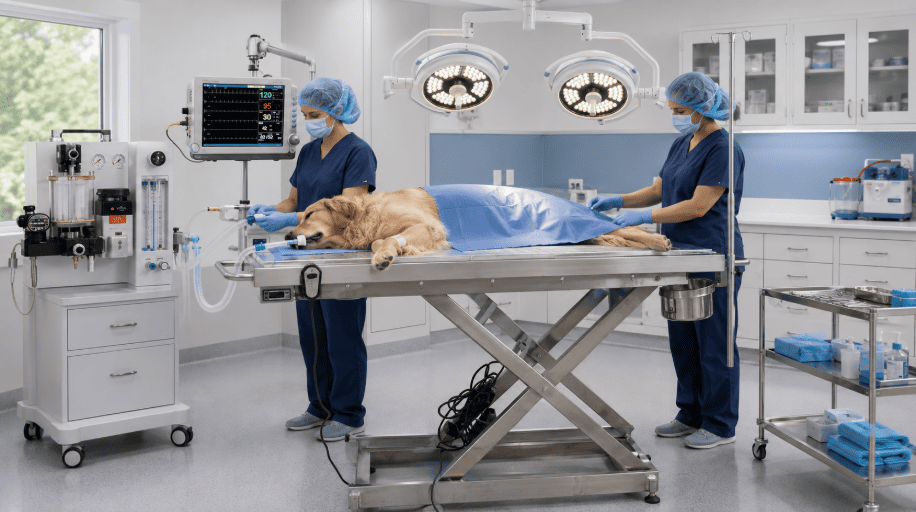

2. The Surgery & Anesthesia Suite

Your surgery room needs one stable work area where the technician can see the patient, anesthesia machine, and monitor without stepping around the table. This physical arrangement matters because even small changes in blood pressure, oxygen level, or breathing can require a fast response.

Veterinary surgery room equipment should create a clear anesthesia loop around the patient. Place the anesthesia machine at the head end of the table. Put the patient monitor at eye level and close enough for the technician to read during intubation, clipping, preparation, and surgery.

The anesthesia monitoring system gives your team live clinical feedback. Your technician can track ECG, SpO2, respiratory rate, end-tidal CO2, temperature, and blood pressure while the patient remains under anesthesia.

Blood pressure checks should occur at least every 5 minutes. A mean arterial pressure below 60 to 65 mmHg requires prompt clinical assessment, because low pressure can reduce tissue perfusion.

Your operating-room pairing should include:

• An anesthesia machine with an oxygen flowmeter, vaporizer, breathing circuit, and scavenging system.
• A multi-parameter patient monitor with ECG, SpO2, NIBP, temperature, and capnography.
• A hydraulic or electric surgical table with height adjustment.
• A warming unit, suction device, emergency drugs, and intubation supplies within easy reach.
• Shadow-free surgical lights above the table.

In tropical regions across Southeast Asia and Africa, clinic conditions can place extra pressure on anaesthetised patients.

High-output air conditioning can cool a treatment room quickly, which may increase the risk of perioperative hypothermia when an animal’s body temperature drops during surgery. A synchronized surgical setup should work as a Patient Safety Workflow Loop, not as a collection of separate devices.

The multi-parameter monitor’s temperature probe should track real-time vital data throughout the procedure. When it detects a temperature drop, the veterinary team can respond immediately by adjusting room conditions and using warm-air blankets or other appropriate warming support.

Direct links between vital monitoring and thermal patient care help reduce avoidable anaesthetic risks, support high-risk patients, and create a smoother recovery period before the animal returns to the ward.

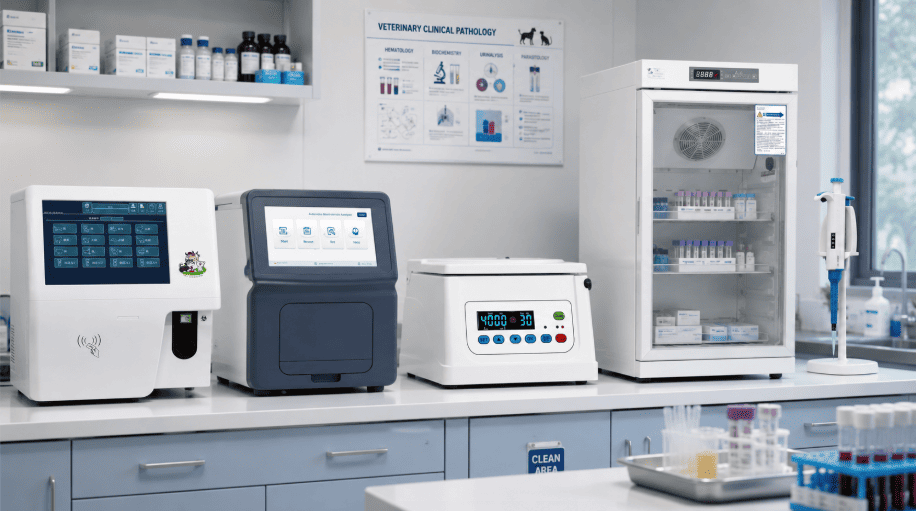

3. The Clinical Laboratory Zone

A well-equipped lab can help you identify anemia, infection, dehydration, kidney concerns, liver concerns, glucose changes, or electrolyte problems before the animal enters the operating room.

Veterinary lab equipment works best when the hematology and chemistry analyzers sit on the same bench. One blood draw can support a complete blood count and a chemistry panel. The CBC gives your vet red-cell, white-cell, platelet, and differential data.

In-house veterinary diagnostics can shorten the wait before anesthesia. A hematology workflow can report 27 parameters in about 2 minutes. A paired chemistry analyzer can provide a detailed chemistry panel in about 8 minutes.

Your laboratory plan should include:

• A veterinary hematology analyzer for CBC testing.
• A veterinary chemistry analyzer for organ markers, glucose, proteins, and electrolytes.
• A centrifuge, refrigerator, pipettes, quality-control material, and reagent storage.
• A clean workbench with a nearby handwashing point and stable power supply.
• A backup power source for analyzers, computers, and refrigerators.

A well-planned veterinary laboratory should follow a clear workflow that protects sample quality at every stage. Place the clean workbench close to the handwashing point so technicians can prepare tubes, slides, and collection materials in a hygienic area before testing begins.

After collection, the blood sample can move directly to the centrifuge for separation, while pipettes help the team transfer precise volumes without cross-contamination or unnecessary delays.

Once prepared, samples can enter the hematology analyzer and chemistry analyzer at the same time. This parallel testing process gives the veterinarian a more complete clinical picture, including blood-cell results and organ-function markers, before anaesthesia or treatment decisions.

A refrigerator with organized reagent storage should remain close enough for practical access but away from heat and direct sunlight. Stable storage conditions protect reagents, reduce waste, and help the laboratory deliver reliable results throughout a busy clinic day.

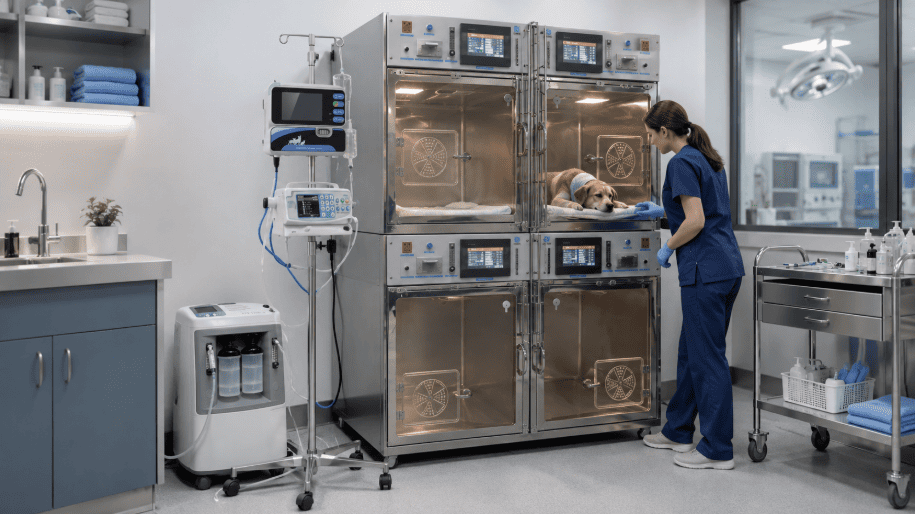

4. The Recovery & Wards Zone

Your recovery area should support quiet observation after surgery. Patients can wake up disoriented, painful, cold, or unstable, so your team needs oxygen, fluid therapy, heat support, and visual access at the cage side.

Veterinary ICU equipment creates a safer recovery station when each device sits in the right place. Put the oxygen concentrator close to the ICU cage. Place the infusion or syringe pump on a secure pole next to the cage door. Your technician can then check the fluid rate, oxygen line, and patient position without repeated handling.

A 10 L oxygen concentrator can deliver 0.5 to 10 L per minute at an oxygen concentration near 93% ±3%. A veterinary syringe pump may offer a flow range of 0.1 to 1,500 mL per hour in 0.1 mL steps.

Your recovery pairing should include:

• Secure ICU cages with clear doors and easy-clean surfaces.
• A veterinary oxygen concentrator with compatible tubing and cage ports.
• A veterinary infusion pump or syringe pump beside each high-risk patient.
• Heat support, temperature checks, and a portable monitor for unstable cases.
• A dedicated power outlet for each cage station, plus backup power for critical devices.

A complete one-stop veterinary equipment solution helps you match cage ports, power plugs, pump poles, tubing, and service plans before shipment.

A reliable animal hospital equipment supplier should also help you map each zone, confirm technical specifications, and prepare equipment lists that fit your target patient volume. This is how a practical turnkey veterinary clinic solution avoids costly gaps after installation.

Fragmented Sourcing Traps vs. The Turnkey Solution Advantage

A fragmented purchase plan can seem cheaper during the quotation stage. However, the real cost often appears when your equipment reaches the port or when your team starts installation.

Imagine you buy the X-ray system, ultrasound unit, anesthesia machine, laboratory analyzers, surgical table, ICU cages, and pumps through 10 separate suppliers.

You now need to manage 10 quotations, 10 payment schedules, 10 packing lists, and several different shipping dates. If one supplier delays a patient monitor or an analyzer, your veterinary hospital setup can stall even when the rest of the equipment has arrived.

Separate orders also make shipping harder to control. A 20-foot container has about 33 m³ of internal space, while a 40-foot high-cube container has about 76 m³. If your equipment arrives as small LCL shipments, you may pay separate consolidation, handling, documentation, storage, and delivery charges for each order.

Current China-to-South Africa LCL estimates can reach about $150 per m³, while a 40-foot container can cost about $2,475 to $3,025 on the same route.

You also need to check every technical detail before dispatch:

• Your X-ray unit, monitor, and laboratory analyzers need the correct voltage and frequency.
• China commonly uses 220V and 50Hz power, while the Philippines uses 220V and 60Hz.
• A 50Hz-only device may not work correctly on a 60Hz supply.
• Plug types, cable lengths, socket loads, and backup-power needs must match your site plan.
• Radiation shielding, room dimensions, drainage, and ventilation may need approval before installation.

A reliable veterinary equipment supplier in China can combine X-ray systems, anaesthesia machines, patient monitors, cages, ultrasound units, and laboratory devices into one coordinated order. Instead of managing separate quotations, invoices, packing lists, and freight schedules, your clinic can work through one clear procurement plan.

MeCan Vet can review equipment specifications, voltage requirements, room dimensions, and accessory needs before packing, which reduces the risk of missing items or compatibility issues during installation.

A one-stop veterinary equipment solution also helps control the hidden costs linked to split purchasing. Several vendors can mean repeated export charges, separate shipments, more customs paperwork, and uneven delivery dates.

Consolidated container shipping allows major equipment to share cargo space, reduces avoidable freight costs, and gives you a clearer schedule for delivery, site preparation, and clinic opening.

Support also becomes easier after delivery. Instead of contacting several sales teams for manuals, spare parts, technical guidance, or warranty questions, you have one accountable partner for the full order. MeCan Vet can also support future purchases as your clinic adds imaging, surgical, laboratory, recovery, or inpatient equipment.

Procurement Area	Multiple Suppliers	MeCan Vet One-Stop Solution
Equipment Orders	Separate quotations and supplier contacts	One coordinated procurement plan
Shipping	Split deliveries and repeated freight charges	Consolidated container shipping
Documentation	Several invoices and packing lists	Unified export documents
Equipment Matching	Greater risk of missing accessories or compatibility issues	Requirements checked before packing
After-Sales Support	Different support contacts for each product	One point of contact for guidance and spare parts
Future Expansion	New supplier search for each upgrade	Ongoing support for future clinic needs

MeCan Vet: Your Trusted One-Stop Veterinary Equipment Solution

MeCan Vet supports buyers across Africa and Southeast Asia with coordinated equipment plans for imaging, surgery, laboratory testing, recovery, and wards. The company reports support for 190 veterinary clinics, alongside hospital and laboratory projects across international markets.

A strong veterinary clinic equipment package starts with your actual clinical needs. A small companion-animal clinic may need a DR X-ray unit, ultrasound system, anesthesia machine, monitor, two analyzers, and 4 to 6 recovery cages.

MeCan Vet can help you align each purchase with your veterinary clinic design plan:

• Match X-ray output, detector size, room shielding, and electrical load to your imaging room.
• Match anesthesia machines, monitors, surgical tables, and lights to your surgery volume.
• Match hematology and chemistry analyzers to your expected daily test count and reagent budget.
• Match ICU cages, oxygen concentrators, pumps, and power outlets to your recovery capacity.
• Confirm 110V, 220V, or 240V requirements, plus 50Hz or 60Hz frequency needs before dispatch.

MeCan Vet also offers remote technical support, video guidance, installation help, and spare-parts coordination after delivery. That gives you one contact for your full turnkey veterinary clinic solution, instead of several factories that each handle only one device.

Ready to Build an Efficient, High-ROI Veterinary Clinic?

A successful veterinary hospital setup depends on two decisions. First, you need a layout that supports fast diagnosis, safe surgery, accurate testing, and calm recovery. Second, you need equipment that arrives ready to work together.

A poor purchasing plan can create delays before your doors even open. Separate suppliers can leave you with mismatched plugs, split shipments, missing accessories, and no clear technical contact. In contrast, a complete veterinary clinic setup gives you more control over your budget, timeline, and daily patient flow.

MeCan Vet helps you avoid the multi-vendor headache with a tailored one-stop veterinary equipment solution. You can receive an equipment plan that fits your room layout, patient volume, clinical focus, local power supply, and wholesale budget.
