Model No: MCL1411

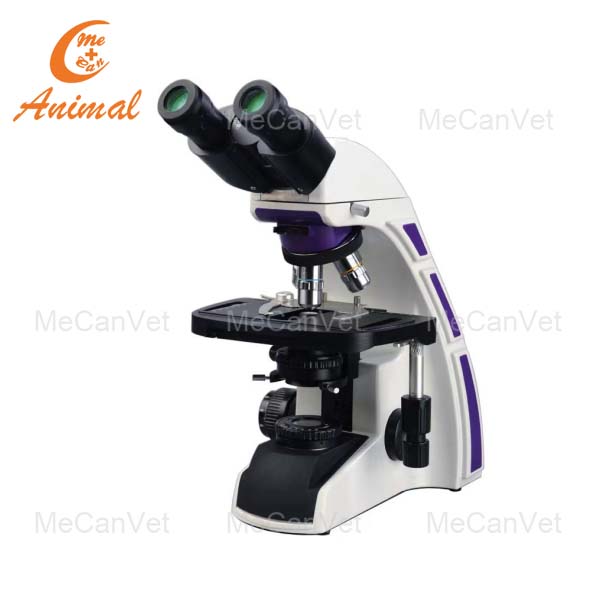

Veterinary LED Microscope
Introducing our advanced Veterinary Microscope, specially designed for clinics, offering unparalleled optical clarity and ergonomic features for accurate diagnostics
Quantity :
Veterinary LED Microscope
Model: MCL1411
Product Overview:
Introducing our advanced Veterinary Microscope, specially designed for clinics, offering unparalleled optical clarity and ergonomic features for accurate diagnostics.
Key Features:
- Optical System: Choose between the Nfinity achromatic correction optional system and the common optical system based on your specific needs.
- Viewing Head: Articulated free binocular head, inclined at 30° for comfortable viewing.
- Interpupillary distance adjustable from 50-75mm.
- Eyepiece: PL10X/23mm high eyepoint eyepiece for clear and detailed observation. Diopter adjustment of ± 5 for personalized viewing.
- Tube diameter of 30mm for optimal compatibility.
- Objective: High-quality Plan Achromatic objectives for exceptional image resolution.
- Objectives include 4X, 10X, 40X, and 100X options.
- Nosepiece: Choose between a backward quintuple or quadruple objective nosepiece.
- Condenser: Abbe condenser set for precise light control and enhanced contrast.
- Stage: X-axis low hand position double mechanical stage for smooth and precise specimen movement.
- Stage dimensions of 220 x 148mm, with a precision of 0.1mm.
- Damped double slide clamp for secure specimen fixation.
- Focusing System: Coaxial coarse and fine focus knobs for fine-tuned focusing.
- Precision of 0.002mm ensures accurate adjustments.
- Illumination: Equipped with a powerful 3W LED lamp for consistent and bright illumination.
- Kohler illumination system for enhanced contrast and clarity.
Elevate your veterinary diagnostics with our Veterinary Microscope, offering advanced optics, ergonomic design, and precise control for accurate examination and analysis.
