Model No: MX-VDR200B10

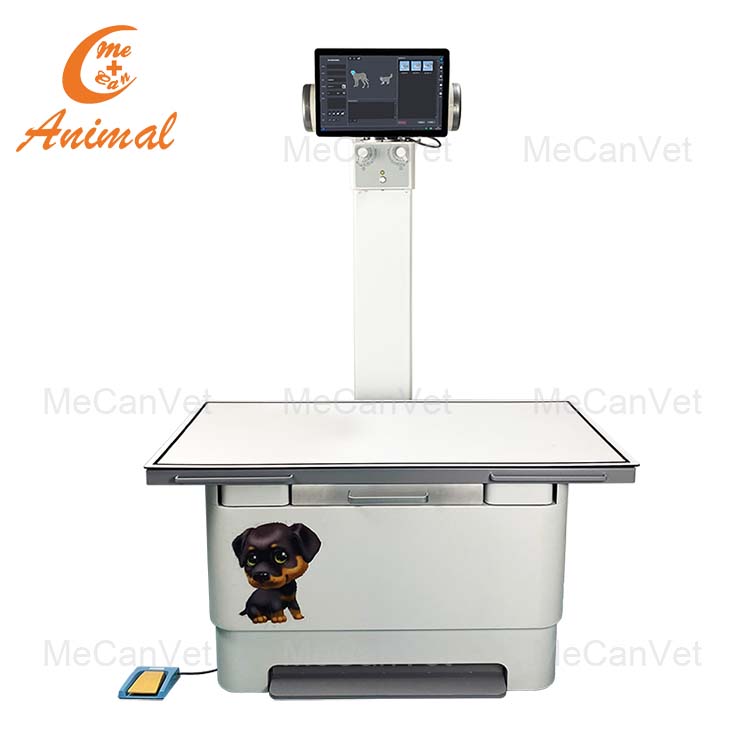

20KW Veterinary Digital X-Ray Machine With Touch Screen
Welcome to MeCan Animal Medical's 20KW Veterinary Digital X-ray Equipment page – your premier source for cutting-edge veterinary imaging solutions. Our advanced digital x-ray equipment is designed to provide precise and reliable diagnostic imaging for animals, ensuring optimal care and treatment.
Quantity :
20KW Veterinary Digital X-Ray Machine With Touch Screen
Model: MX-VDR200B10
Veterinary Digital X-ray Equipment Overview:
Explore our state-of-the-art Veterinary Digital X-ray Equipment, a crucial tool for modern veterinary practices. Our equipment is equipped with advanced digital imaging technology that offers high-resolution radiographs, allowing veterinarians to accurately diagnose and monitor a wide range of conditions in animals. With intuitive controls and user-friendly interfaces, our equipment streamlines the imaging process and enhances clinical workflow.Key Features of Veterinary x ray equipment:
Discover the exceptional features that define our Veterinary Digital X-ray Equipment:
- Optimal Height: The equipment's height is designed to be less than 2 meters, catering to small rooms and space limitations.
- Enhanced Imaging Distance (SID): With a SID greater than 1 meter after tablet placement, complete imaging for 17*17 inch images is ensured.
- Clearer Images: The 5.5cm extreme focus screen distance surpasses the national 10cm standard, resulting in clearer and more detailed images.
- Rat Prevention: The fully enclosed design effectively prevents rats and other contaminants from entering the equipment.
- High-Quality Panel: The anti-double bed panel is of high quality, with a clean and beautiful appearance. It resists acid and alkali corrosion and has a low ray blocking rate.
- Flexible Movement: The foot switch controls a four-way floating structure, enabling 44cm lateral and 25cm longitudinal movement of the bed surface.
- Space-Saving Design: Load-bearing plate + magnetic front cover structure, with a built-in generator for efficient use of space and quick installation.
Veterinary Digital X ray EquipmentTechnical Parameters:
Model | MX-VDR200B10 |
Power | 20kW |
Power Supply | Single-phase 220V 50/60HZ (wire diameter>4mm2,internal resistance<;0.5Ω) |
Working Frequency | 30kHz |
mA | 10-320mA |
1-320mAS | |
KV | 40-125kv, 1kv step |
Exposure time | 0.03-6.3S: 1ms step |
Tube focus | 0.6-0.6/1.2*1.2mm |
X-ray tube | 7239EX/7242EX/HX711O(option) |
Anode rotating speed&heat capacity | 2800prm/140kHU |
X-ray tube | Width 70cm, length140 or 120 cm, optional urinary trough of the table |
Image size | 17*17 inch (14*17 for (option) |
Pixels Matrix | 140um |
A/D Conversion | 16bits |
Spatial Resolution | 3.6 Lp/mm |
Software | Professional Veterinary Software |
Computer configuration | CPU: I5, 8G memory, 1T solid state drive, 2 pcs Gigabit network card |
Why Choose MeCan Animal's Veterinary Digital X ray Equipment:
As leading veterinary x-ray equipment manufacturers, we take pride in delivering quality and innovation:
- Expert Manufacturing: Backed by our reputation as reliable veterinary x-ray equipment manufacturers, our products undergo rigorous quality control to ensure durability and performance.
- Trusted Diagnostic Solutions: Join numerous veterinary professionals who rely on our equipment for accurate and timely diagnoses.
Contact Us:
For inquiries, quotes, and technical details about our Veterinary Digital X-ray Equipment, reach out to our dedicated team:
Email: market@mecanmedical.com
Phone/Whatsapp/WeChat: +8617324331586
Phone/Whatsapp/WeChat: +8617324331586
