Model No: MX-DR100A11

Portable X-Ray for Veterinary Radiology

Veterinary X-ray System, designed for clear and precise imaging. The Veterinary Portable X-Ray offers convenience and mobility, allowing for easy transport and use in various settings.

Quantity :

Contact Now

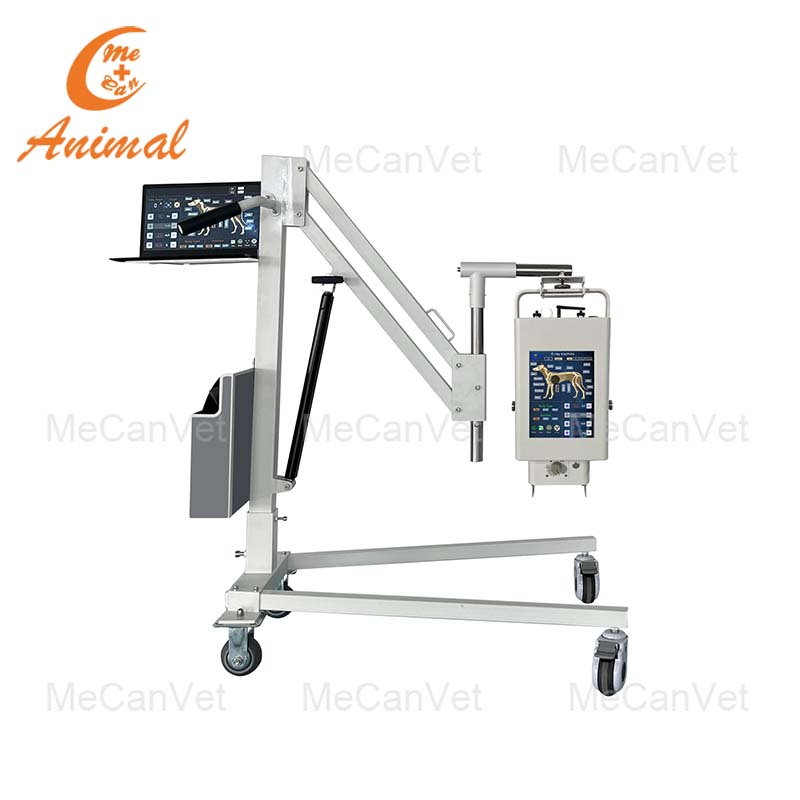

10KW Portable Veterinary X-ray System

Model: MX-DR100A11

Veterinary X-ray System Description:

The Portable Veterinary X-ray System is a highly efficient and advanced device designed specifically for veterinary applications. It offers a reliable and convenient solution for imaging various animals. With its foldable design and portability, it can be easily transported and used in different settings. The system is equipped with a 10kW power supply and a range of parameters that ensure accurate and detailed images.

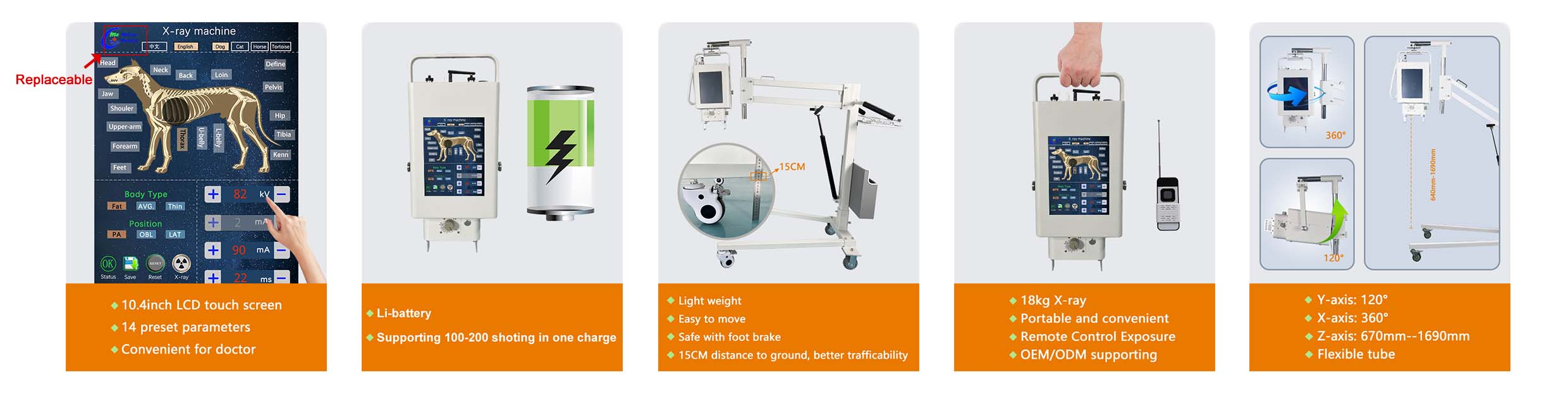

10KW Veterinary X-ray System Highlights:

10kW power for efficient imaging.
Foldable and portable design.
Supports 100-200 shootings with one charge of the Li-battery.

10KW Portable Veterinary X-ray System Features:

The Veterinary X-ray System utilizes a 17*17 inch flat panel detector for clear images.
It has a working frequency of 300kHz and an anode heat capacity of 20kJ.
The kV range is 40-125kV, and the mA range is 5-160mA, allowing for precise adjustments.
The mAs can be regulated in steps from 0.1mAs to 320mAs.
The A/D conversion is 16bits, providing high-resolution images.

10KW Portable Veterinary X-ray System Parameters:

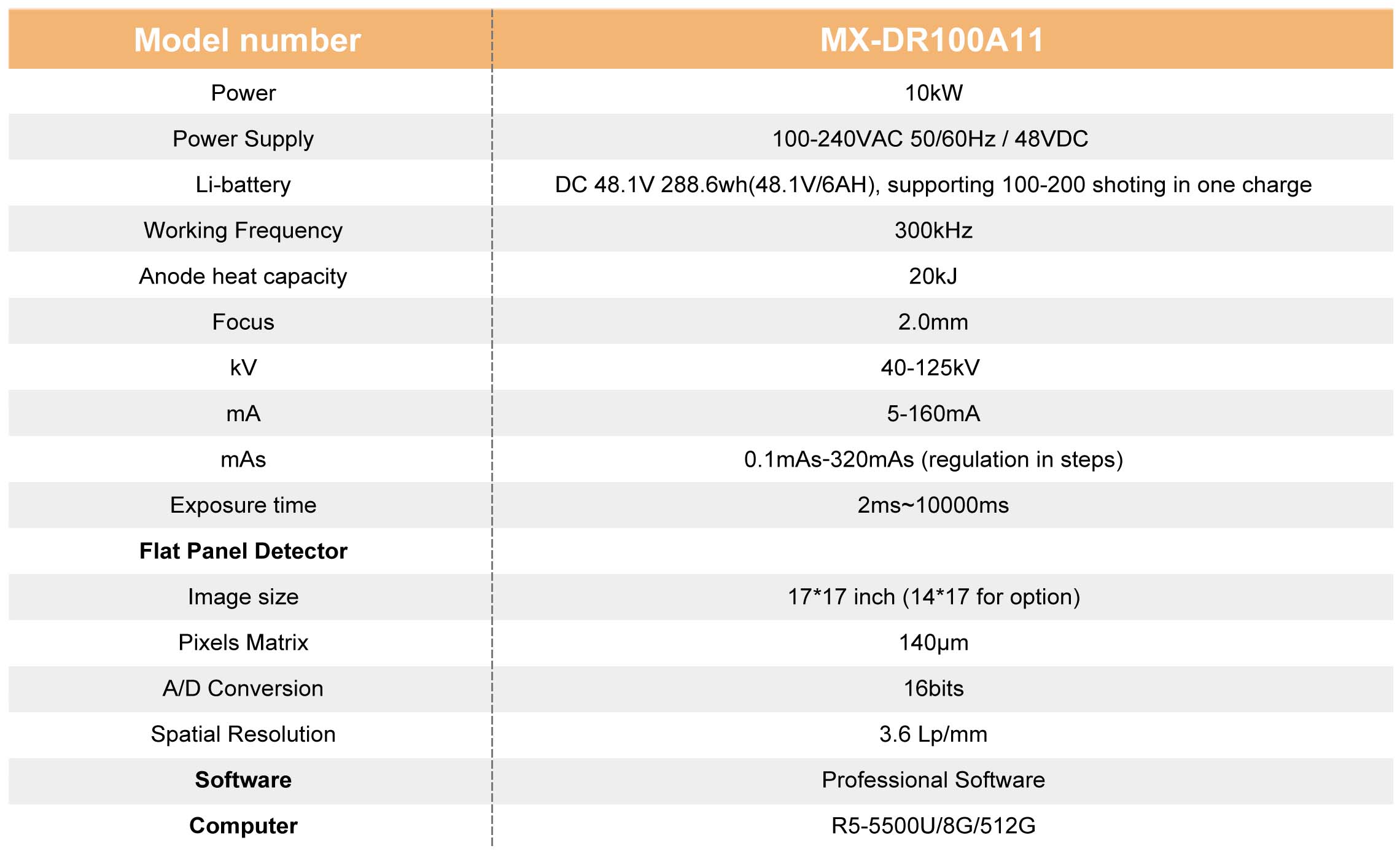

10kW MX-DR100A11 X Ray Machine specification

Veterinary X-ray System Application:

Commonly used for stand photography of various animals.

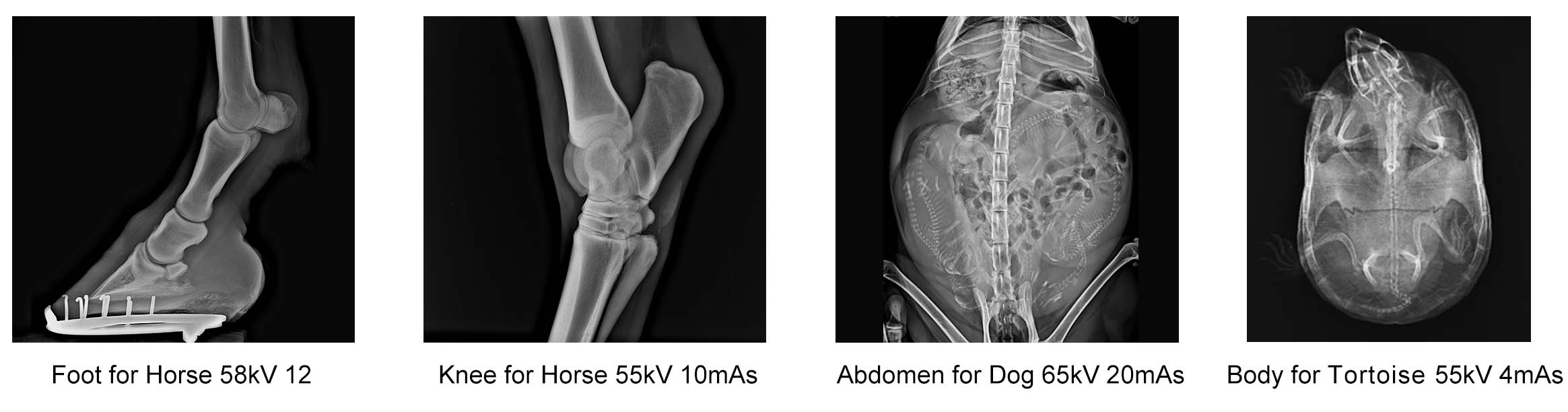

Suitable for imaging specific body parts of different animals, such as the foot of a horse, knee of a horse, abdomen of a dog, and body of a tortoise.
Helps veterinarians accurately diagnose and treat various conditions in animal
