Model No: MCS0027

Portable Multi-Parameter Veterinary Monitor

The Portable Multi-Parameter Veterinary Monitor, a versatile tool for monitoring vital signs in animals. This Vet Monitor is compact and easy to use, making it ideal for use in a variety of settings.

Quantity :

Contact Now

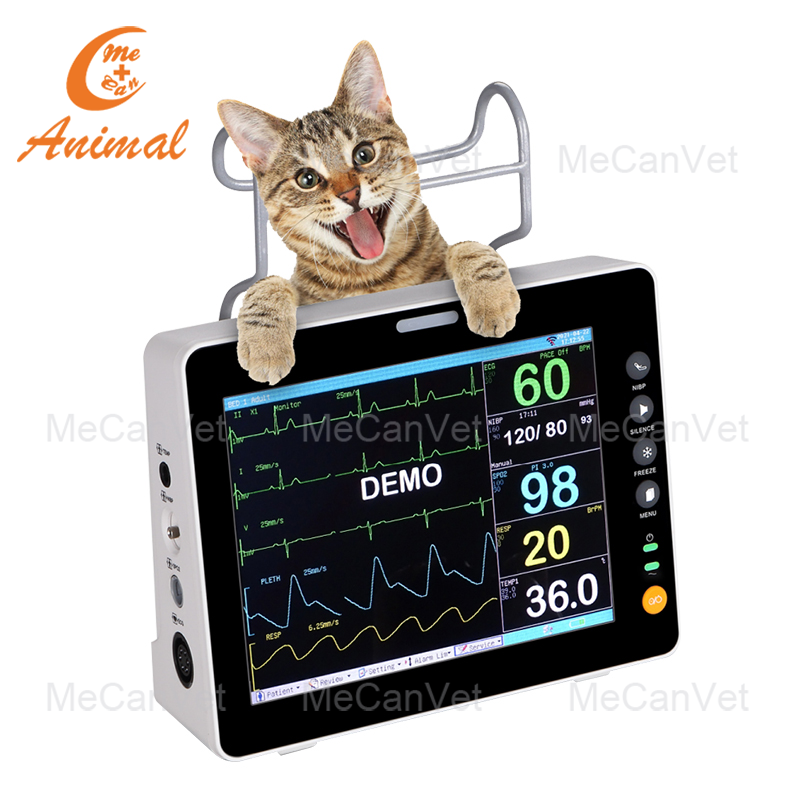

Portable Multi-Parameter Veterinary Monitor

Portable Multi-Parameter Veterinary Monitor:

Introducing a cutting-edge Portable Multi-Parameter Monitor , designed specifically for veterinary professionals. This Vet Monitor offers accurate and reliable monitoring of vital signs in a compact and portable design, making it ideal for use in various veterinary settings. With advanced technology and user-friendly features, this monitor ensures precise measurements and easy operation for efficient Animal care. Elevate your veterinary practice with this innovative monitoring solution.

Features:

8 inch,800x600 color TFT,multi-channel display,wave channel:13 waves maximun
Sp02 have DSP algorithm and excellent performance when movement, pO2 has PI and exellent performance inlow perfusion
NIBP VET algorithm support animals from small cat to horse,NIBP over pressure protectionoUnique human voice alarm

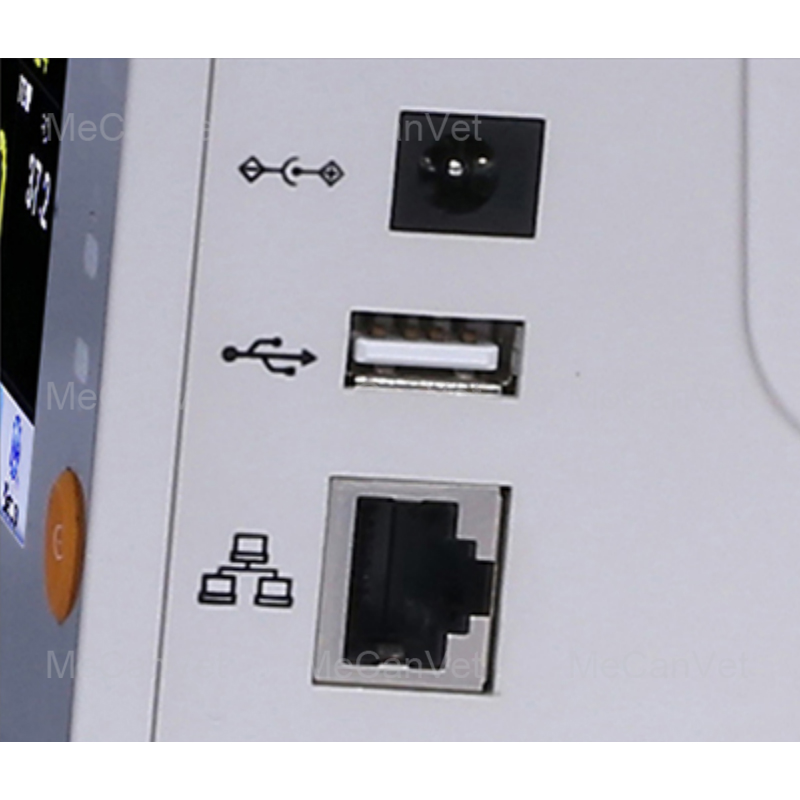

Standard RJ45 network, optional USB WIFI module can easy connect to CMS
USB data output with software to view data on computer
Kinds screen layout include Big font screen, parameter and wave can turned on and off for each

Specifications:

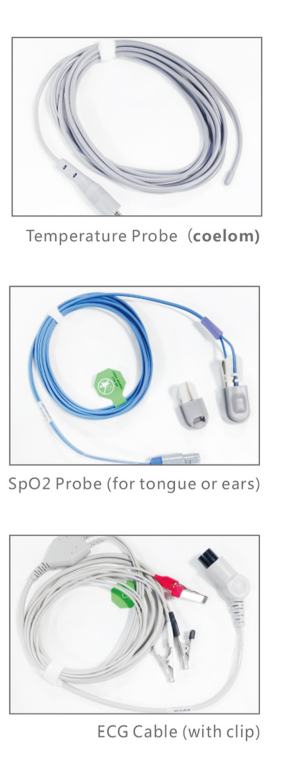

Animal monitor probes

ECG

Lead : 3/5

5 lead mode: Ⅰ,Ⅱ,Ⅲ, aVR, aVL, aVF, V

3 ECG channels, 7 ECG waves in ECG full lead mode

HR:15-500BPM

Gain : X1/4,X1/2,X1,X2

Wave speed : 12.5/25/50 mm/s

Pacemaker

Arrythmia analysissT analysis

Filter mode: other, monitor, surgery

RESP

Impedance between RA-LL or RA-LA

RESP lead : Ⅰ/Ⅱ

Wave speed : 6.25, 12.5, 25mm/s

Apnea Alarm,5~120s

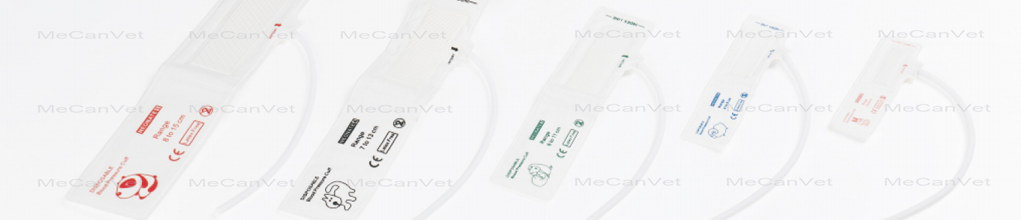

NIBP

Method : Oscillometry

For animal from <10kg to >20kg

Unit : mmHg ,Kpa

Mode: Manual,Auto,STAT

Measure and Alarm Range

SYS 40~280 mmHg

DIA 10 ~220 mmHg

MEAN 20 ~ 240 mmHg

Cuff 0 ~ 300mmHg

Static pressure: ±3mmHg

Automatic measurement interval time:

1 minute ~ 480 minutes

SPO2

SpO2,PR,PI

Accuracy:±2%( 70~100%)

Pulse Rate: 20~250bpm

Temperature

Channel : 2

Measure and Alarm Range0 - 50°C

Sensor type : rectal

Unit : °C

Accuracy : ±0.1°C

Storage

≥720 hours trend graph and trend table

2 houss wave review

200 alarm review

Alarm

3 levels alarm

All the alarm limit can be adjusted by user.

Unique Voice alarm

CO2

Measuer Range: 0%~13%

Accuracy:±2 mmHg @<5.0% COz (at ATPS)

Breath Rate: 3- 150 bpm

Standard:

ECG, NIBP,SpO2,PR,TEMP,RESP

Optional:

Mainstream/Sidestream EtCO2,

Wall Mount,Trolly,CMS
