Model No: MCB0051
150L Horizontal Steam Sterilizer Autoclave | MeCan Animal
Our Horizontal Steam Sterilizer Autoclave, an advanced autoclave steam sterilizer, ensures thorough sterilization in healthcare and research settings.
Quantity :

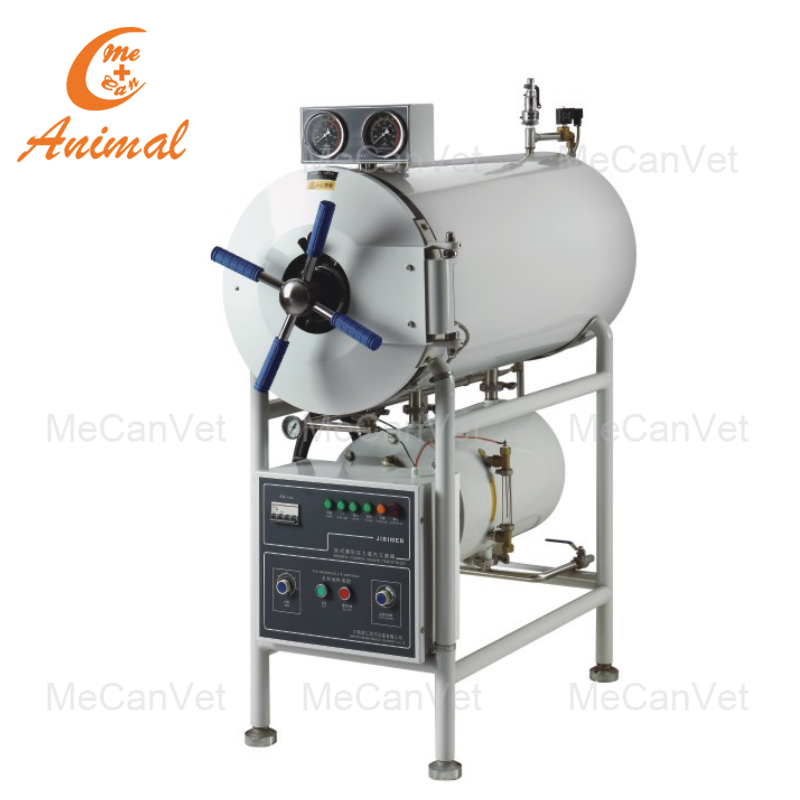

150L Horizontal Steam Sterilizer Autoclave
Model: MCB0051
Horizontal Steam Sterilizer Autoclave Introduction:
The Horizontal Steam Sterilizer Autoclave utilizes gravity exchange to expel cold air from the chamber, ensuring thorough and reliable sterilization. Its intelligent control system adjusts the steam inlet and outlet based on chamber temperature during sterilization. This unit is the perfect sterilization equipment for clinics, scientific research institutes, and various organizations, enabling the sterilization of surgical instruments, fabrics, glassware, and culture media.
Characteristics of Horizontal Steam Sterilizer Autoclave:
- Automated Sterilization: The sterilization process is automatically controlled, making it easy to operate.
- Built-In Drying Function: This horizontal autoclave is equipped with a drying function, suitable for drying medical dressings.
- Safety Measures: Horizontal Steam Sterilizer Autoclave features over-temperature and over-pressure auto-protection mechanisms. The chamber door cannot be opened until the chamber pressure reaches 0.027MPa, ensuring user safety. Additionally, the unit won't start if the door isn't securely closed. A safety valve opens automatically if the inner pressure exceeds 0.24MPa, releasing steam into the water tank.
- Water-Lack Protection: In the event of a water shortage, the power supply is automatically cut off, and an alarm is triggered.
- Stainless Steel Chamber: The horizontal autoclave chamber is constructed from high-quality stainless steel, ensuring durability and corrosion resistance.
Horizontal Autoclave Parameters:
MODEL | MCB0051 |
Sterilizing chamber volume | 150Lφ440×1000mm |
Working pressure | 0.22MPa |
Working temperature | 134℃ |
Temperature adjust range | 40~134℃ |
Time for sterilization | 0~60min |
Time for drying | 0~60min |
Heat average | ≤±2℃ |
Power | 9KW/380V.50Hz |
Dimension(mm) | 1400×600×1300 |
Transport dimension(mm) | 1560×750×1850 |
G.W/N.W | 320kg/1240kg |
Horizontal Steam Sterilizer Autoclave's Applications:
The Horizontal Steam Sterilizer Autoclave is a versatile and indispensable tool in clinics, research institutes, and various organizations. It's used for the sterilization of surgical instruments, fabrics, glassware, culture media, and more.
Why Choose the Horizontal Steam Sterilizer Autoclave?
Reliable Sterilization: Utilizing gravity exchange, it ensures thorough sterilization, meeting the highest standards.
Ease of Use: The automated sterilization process and user-friendly design make it easy to operate.
Enhanced Safety: Multiple safety features, including pressure and temperature safeguards, prioritize user and equipment safety.
Water-Lack Protection: It safeguards against water shortages, preventing potential issues.
Stainless Steel Chamber: The chamber's stainless steel construction guarantees durability and resistance to corrosion.
Ease of Use: The automated sterilization process and user-friendly design make it easy to operate.
Enhanced Safety: Multiple safety features, including pressure and temperature safeguards, prioritize user and equipment safety.
Water-Lack Protection: It safeguards against water shortages, preventing potential issues.
Stainless Steel Chamber: The chamber's stainless steel construction guarantees durability and resistance to corrosion.
