Model No: MCV0201

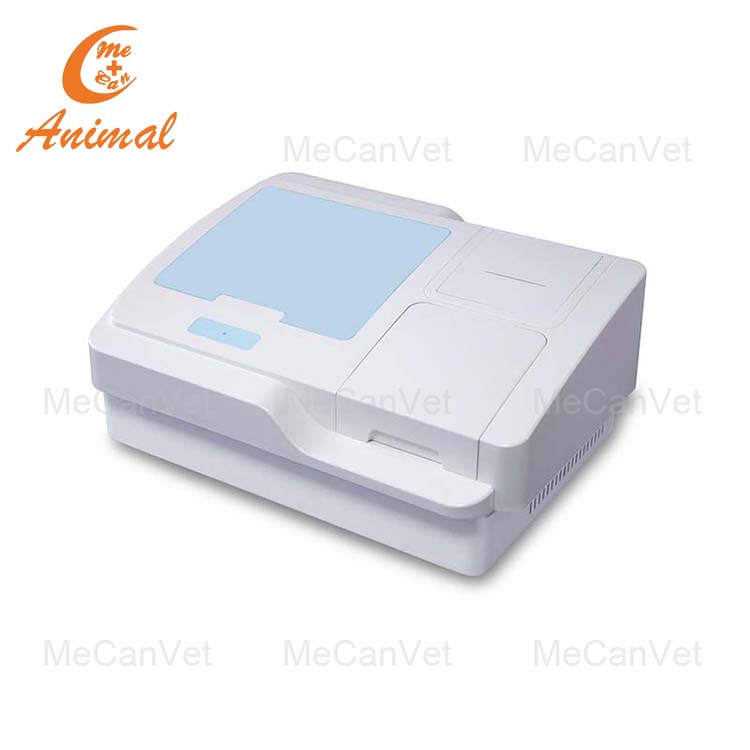

ELISA Microplate Reader for Veterinary Laboratory | 96-Well Microplate Reader
Our Advanced ELISA Microplate Reader is your laboratory's indispensable tool, designed to excel in veterinary laboratory settings. This versatile 96-Well Microplate Reader combines precision and efficiency to simplify complex analyses.
Quantity :
ELISA Microplate Reader for Veterinary Laboratory
Model: MCV0201
ELISA Microplate Reader Overview:
Our Advanced ELISA Microplate Reader is your laboratory's indispensable tool, designed to excel in veterinary laboratory settings. This versatile 96-Well Microplate Reader combines precision and efficiency to simplify complex analyses.
Key Features:
1. Flexible Measurement Options:
- Sample Bracket: The addition of a sample bracket provides convenience and stability during sample handling, ensuring accurate and consistent results.
- Advanced Optical Light Matching System: Our analyzer utilizes an advanced optical light matching system, guaranteeing precise and reliable results by accurately measuring and analyzing coagulation parameters.
2. Proven Optical System:
- 8-Channel Optical Fiber Scanning: The reader incorporates a reliable 8-channel optical fiber scanning system, ensuring the accuracy of your results.
- Auto Plate Centering System: Accurate cell center positioning minimizes errors and optimizes data integrity.
3. Efficient Testing:
- Multi-Test Capability: Perform up to 12 different tests on a single plate, saving both time and resources.
- Ample Data Storage: Store up to 500 test items and an extensive 10,000,000 test data records, providing secure and accessible research data management.
4. Comprehensive Reporting:
- Versatile Result Output: Choose from various result output formats, including comprehensive patient reports for simplified data interpretation and communication.
5. Enhanced Efficiency:
- Auto Lamp Adjustment and Calibration: Auto lamp adjustment and calibration enhance system efficiency while reducing operational costs.
- Seamless Connectivity: Easily connect to your PC through the USB interface and harness the full capabilities of the Found WordStation PC software.
Technical Parameters:
Input | DIATEK ELISA Reader software |
Microplate types | 96/48 -well plate |
Photodetector | Silicon Photodiode |
Light source | 8v/50w Controlled tungsten halogen |
lamp OR LED light | |
Wavelength range | 400nm-800nm |
Standard filters | 405.450,492,630nm 4 optional |
Reading range | 0.000-4.000A |
Resolution | 0.001A |
Accuracy | t0.008A |
Reproducibility | s0.2% |
Stability.±0.003A | |
Shaking | Linear Shaking,3 speeds |
Interface connections | USB |
Power supply | 100-240V.50-60Hz |
Dimensions | 460(L)x350(W)x197(H)mm |
Net weight | 7 kg |
Our Advanced ELISA Microplate Reader, ideal for veterinary laboratories, combines precision and efficiency to streamline complex analyses, making it an indispensable tool for your research.
