Model No: MX-VDR056A10

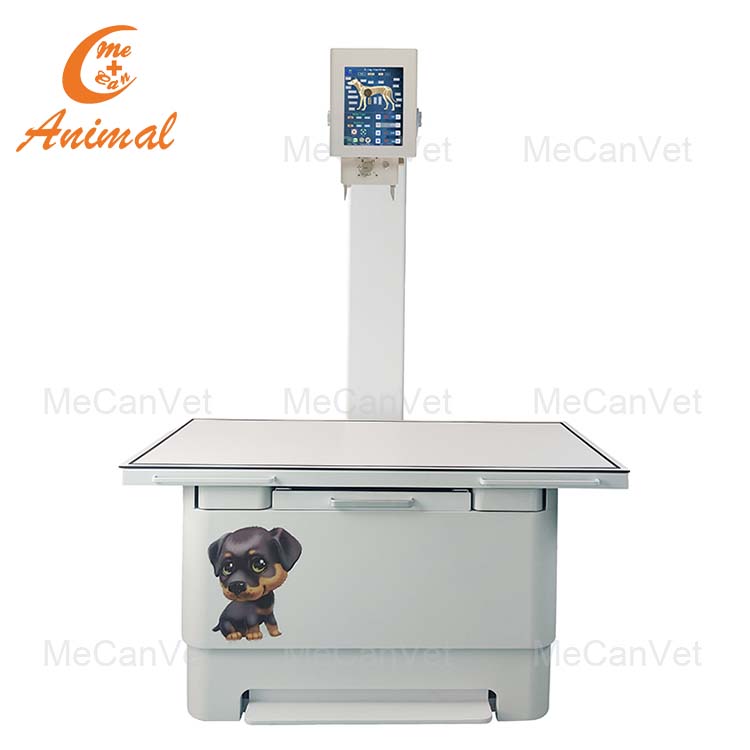

5.6 KW Veterinary Digital X-Ray Mahine With Touch Screen
Experience precise diagnostics with MeCan Animal's advanced digital X-ray machine for veterinary care. Space-saving design, advanced bed control, and quick installation for enhanced efficiency.
Quantity :
5.6 KW Veterinary Digital X-Ray Mahine With Touch Screen
Model: MX-VDR056A10
Product Overview:
At MeCan Animal, we understand the importance of accurate and efficient diagnostic tools in veterinary practice. Our Digital X-Ray Machine for Veterinary offers a state-of-the-art solution for obtaining clear and detailed images of animals, aiding veterinarians in making informed medical decisions.Key Features:

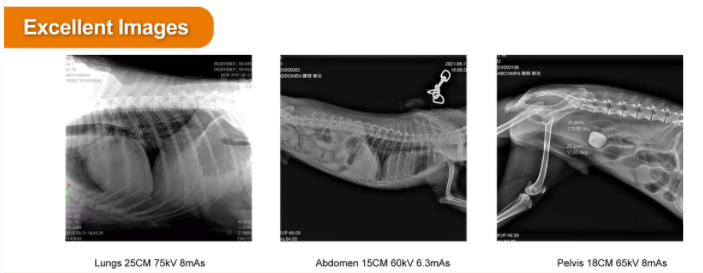

- High-Quality Imaging: Our digital X-ray machine employs advanced technology to deliver high-resolution images, enabling veterinarians to examine anatomical structures and detect abnormalities with exceptional clarity.
- Tailored for Animals: Designed specifically for veterinary use, our digital X-ray machine considers the diverse sizes and shapes of animals, ensuring optimal positioning and minimal stress during imaging.
- User-Friendly Interface: The intuitive user interface simplifies operation, allowing veterinary professionals to quickly capture images and make real-time adjustments as needed.
- Efficient Workflow: Experience streamlined workflow with rapid image processing and seamless connectivity to other veterinary systems, enhancing overall efficiency in the clinic.
- Space-Saving Design: Measuring under 2 meters in height and equipped with a built-in generator, our digital X-ray machine saves space while delivering powerful imaging capabilities.
- Advanced Bed Control: The foot switch controls the four-way floating structure of the bed surface, allowing movement of up to 44cm left and right, and 25cm back and forth, ensuring precise patient positioning.
- Robust Construction: Featuring a high-quality anti-double bed panel and magnetic front cover structure, our digital X-ray machine boasts an elegant, clean, and beautiful appearance.
- Dose Management: Our digital X-ray machine is equipped with advanced dose management features, prioritizing the safety and well-being of both animals and veterinary staff.
- Quick Installation: With its efficient design and user-friendly features, our digital X-ray machine can be installed quickly, ensuring minimal disruption to your veterinary practice.
Technical Parameters:
Model | MX-VDR056A10 |
Power | 5.6kW(touch screen) |
Power Supply | Single-phase 220V 50/60HZ (wire diameter>4mm2,internal resistance<;0.5Ω) |
Working Frequency | 80-200kHz |
mA | 32-100mA |
0.1-320mAS | |
KV | 40-125 |
Exposure time | 0.02-10S |
Tube focus | 1.8*1.8mm |
X-ray tube | 7239EX/7242EX/HX711O(option) |
Anode rotating speed&heat capacity | fixed anode |
X-ray tube | Width 70cm, length140 or 120 cm, optional urinary trough of the table |

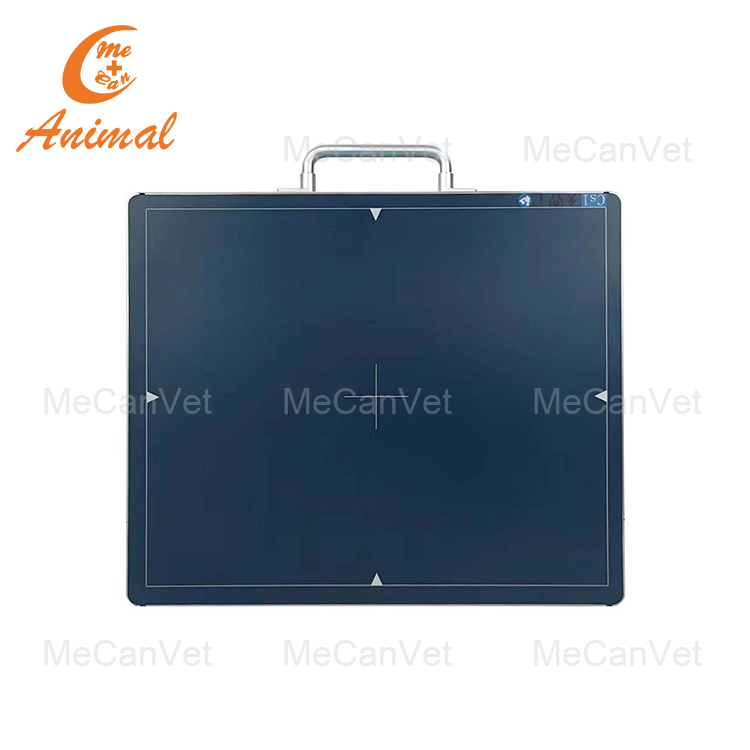

Image size | 17*17 inch (14*17 for (option) |
Pixels Matrix | 140um |
A/D Conversion | 16bits |
Spatial Resolution | 3.6 Lp/mm |
Software | Professional Veterinary Software |

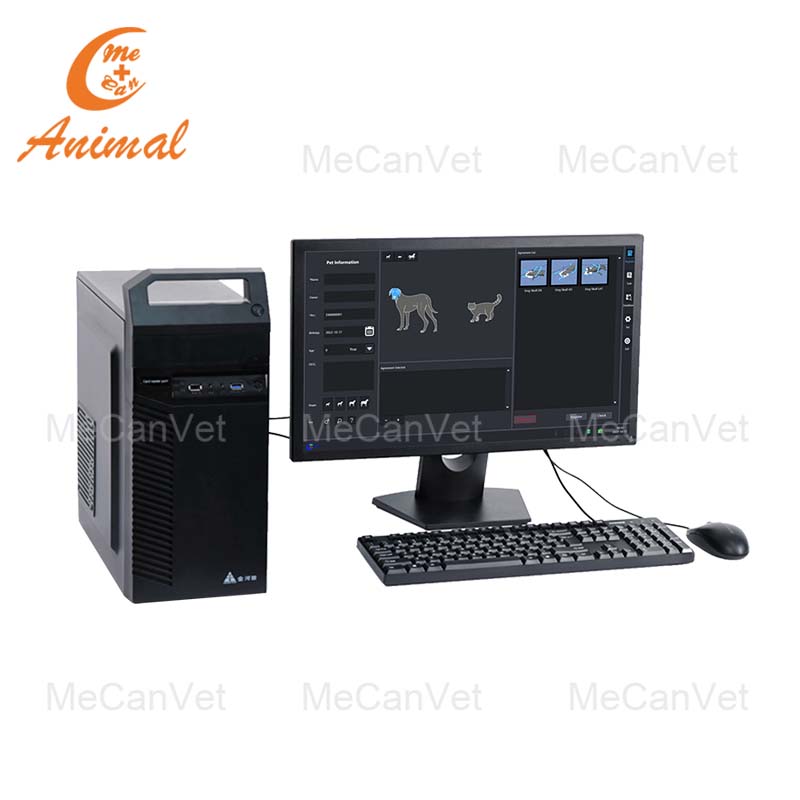

Computer configuration | CPU: I5, 8G memory, 1T solid state drive, 2 pcs Gigabit network card |
Benefits:
- Accurate Diagnostics: Obtain precise images for accurate diagnosis, enabling effective treatment planning and monitoring of veterinary patients.
- Reduced Radiation Exposure: Advanced technology minimizes radiation exposure while maintaining high-quality imaging, ensuring the safety of animals and personnel.
- Enhanced Veterinary Care: MeCan Animal's digital X-ray machine empowers veterinarians to deliver superior care, improving patient outcomes and client satisfaction.
