Model No: MCH0028

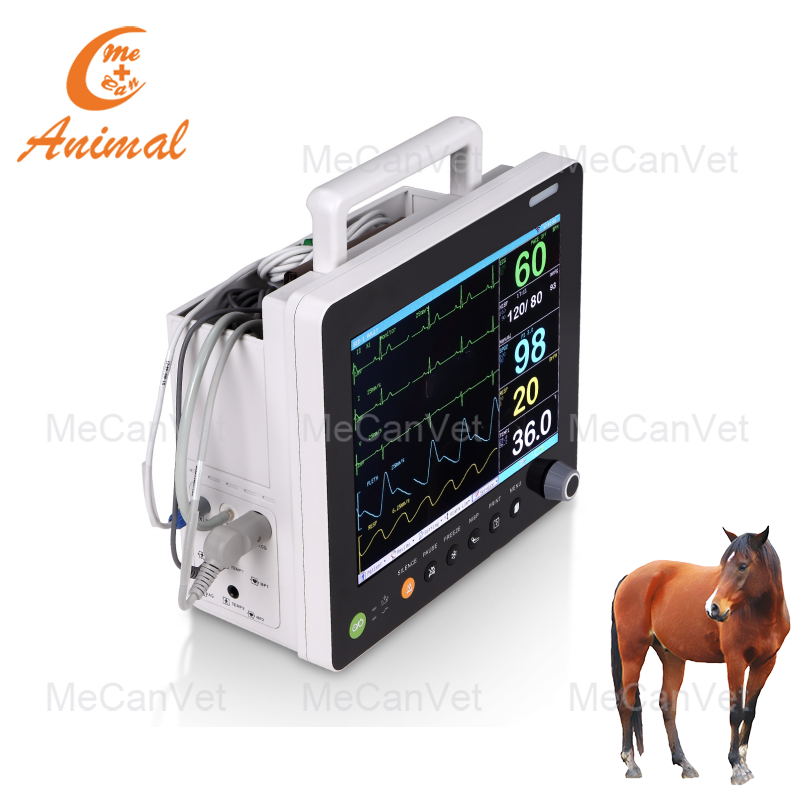

15 Inch Display Pet Veterinary Monitor

This is a portable multi-parameter monitor designed specifically for pet veterinary use. This monitor provides accurate and reliable monitoring of vital signs to ensure the health and safety of your furry patients. Ideal for use in veterinary clinics or on-the-go veterinary services.

Quantity :

Contact Now

15 Inch Display Pet Veterinary Monitor

Medol Number:MCO9000

15 Inch Display Pet Veterinary Monitor:

Introducing the 15 Inch Display Pet Veterinary Monitor, a portable multi-parameter monitor designed specifically for pet veterinary use. This monitor provides accurate and reliable monitoring of vital signs to ensure the health and safety of your furry patients. Ideal for use in veterinary clinics or on-the-go veterinary services.

Features:

15 inch,800x600 color TFT,multi-channel display,wave channel:13 waves maximun
SpO2 have DSP algorithm and excellent performance when movement, SpO2 has PI and exellent performance in low perfusion
NIBP VET algorithm support animals from small cat to horse, NIBP over pressure protection
Unique human voice alarm
Standard RJ45 network, optional USB WIFI module can easy connect to CMS
USB data output with software to view data on computer
Gas module can auto detect 5 anethesia gas type: HAL, ENF, ISO, SEV, DEV
kinds screen layout include Big font screen, parameter and wave can turned on and off for each
Accessory carbinet

Specifications:

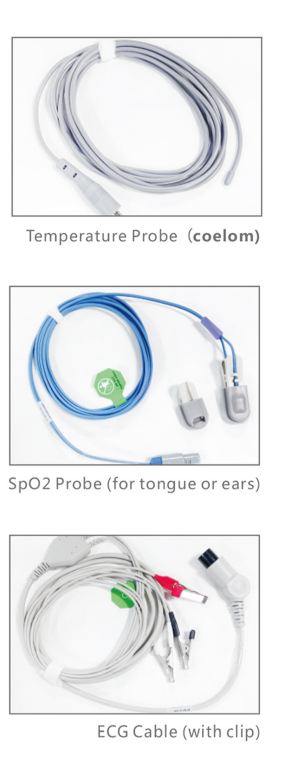

Veterinary Monitor probe

ECG

Lead : 3/5

5 lead mode: Ⅰ,Ⅱ,Ⅲ, aVR, aVL, aVF, V

3 ECG channels, 7 ECG waves in ECG full lead mode

HR:15-500BPM

Gain : X1/4,X1/2,X1,X2

Wave speed : 12.5/25/50 mm/s

Pacemaker

Arrythmia analysis

ST analysis

Filter mode: other, monitor, surgery

RESP

Impedance between RA-LL or RA-LA

RESP lead : Ⅰ/Ⅱ

Wave speed : 6.25, 12.5, 25mm/s

Apnea Alarm,5~120s

NIBP

Method : Oscillometry

For animal from <10kg to >20kg

Unit : mmHg ,Kpa

Mode: Manual,Auto,STAT

Measure and Alarm Range

SYS 40~280 mmHg

DIA 10 ~220 mmHg

MEAN 20 ~ 240 mmHg

Cuff 0 ~ 300mmHg

Static pressure: ±3mmHg

Automatic measurement interval time:

1 minute ~ 480 minutes

SPO2

SpO2,PR,PI

Accuracy:±2%( 70~100%)

Pulse Rate: 20~250bpm

Temperature

Channel : 2

Measure and Alarm Range0 - 50°C

Sensor type : rectal

Unit : °C

Accuracy : ±0.1°C

Recorder

3 channals

Storage

≥720 hours trend graph and trend table

2 houss wave review

200 alarm review

Alarm

3 levels alarm

All the alarm limit can be adjusted by user.

Unique Voice alarm

IBP

Sensor: OHMEDA or BD, EDWARD compatible

Channels: 2

Measuer Range: -50~ 360 (mmHg)

Accuracy(no sensor): ±2% or £1mmHg, use the greater

CO2

Measuer Range: 0%~13%

Accuracy:±2 mmHg @<5.0% COz (at ATPS)

Breath Rate: 3- 150 bpm

Standard:

ECG, NIBP, SpO2, PR, TEMP, RESP

Optional:

Mainstream/Sidestream EtCO2,

GAS, IBP-1/IBP-2, Thermal Recorder,

Wall Mount, Trolly, CMS

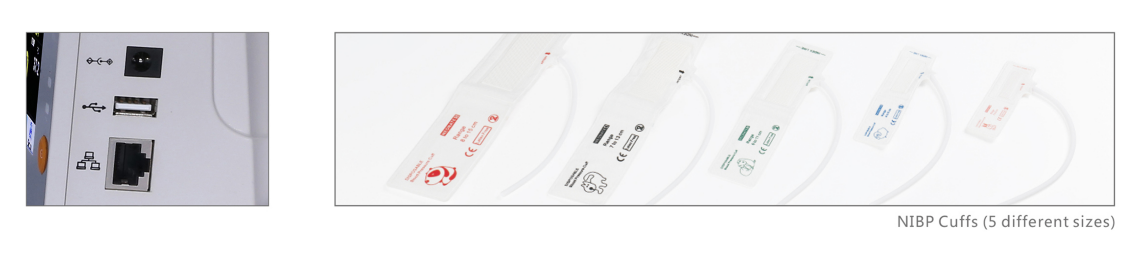

NIBP Cuffs(5 different sizes)
