Vet Monitor
Model No: MCH0022

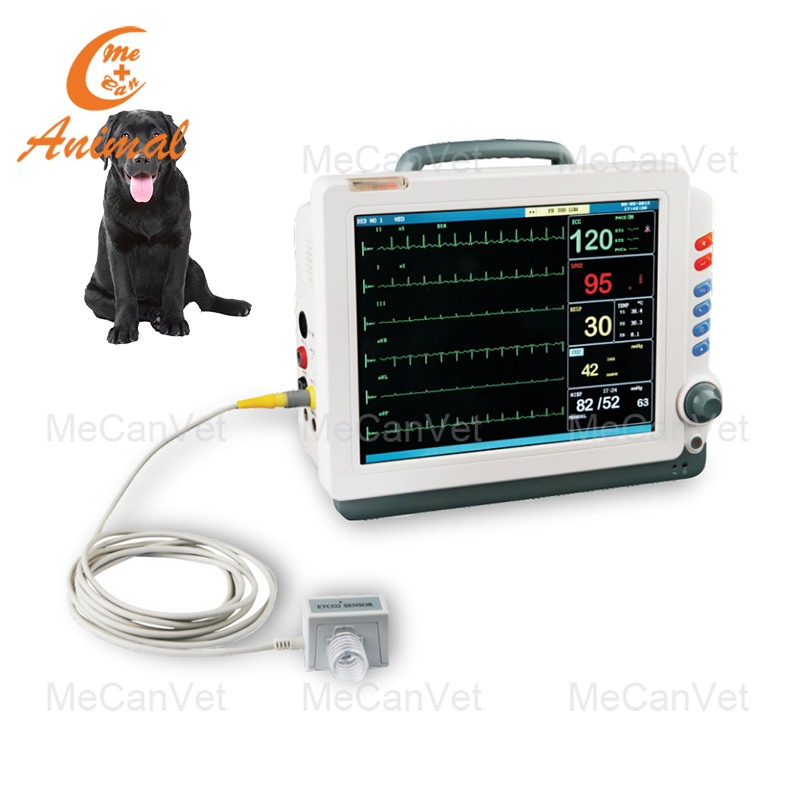

12.1 Inch TFT Veterinary monitor

The MCO8000 Vet Monitor offers crystal-clear imaging and advanced features to ensure accurate diagnosis and monitoring of animals. Ideal for use in veterinary clinics and hospitals, this monitor provides reliable performance and exceptional quality.
Quantity :
Contact Now

12.1 Inch TFT Veterinary monitor

Medol Number:MCO8000

12.1 Inch TFT Veterinary monitor:

Introducing the 12.1 Inch TFT monitor, a top-of-the-line display designed specifically for veterinary use. This Vet Monitor provides clear and accurate imaging for monitoring animals during procedures and examinations. With its high-resolution screen and advanced features, this monitor is a must-have for any veterinary practice.



Features of 12.1 Inch TFT monitor:
  • 12.1 inch, 800x600 color TFT, multi-channel display, wave channel: 13 waves maximum
  • SpO2 have DSP algorithm and excellent performance when movement, SpO2 has PI and exellent performance in low perfusion
  • NIBP VET algorithm support animals from small cat to horse, NIBP over pressure protection
  • Unique human voice alarm
  • Standard RJ45 network, optional USB WIFI module can easy connect to CMS
  • USB data output with software to view data on computer
  • Gas module can auto detect 5 anethesia gas type: HAL, ENF, ISO, SEV, DEV
  • kinds screen layout include Big font screen, parameter and wave can turned on and off for each
Specifications of 12.1 Inch TFT Veterinary monitor:

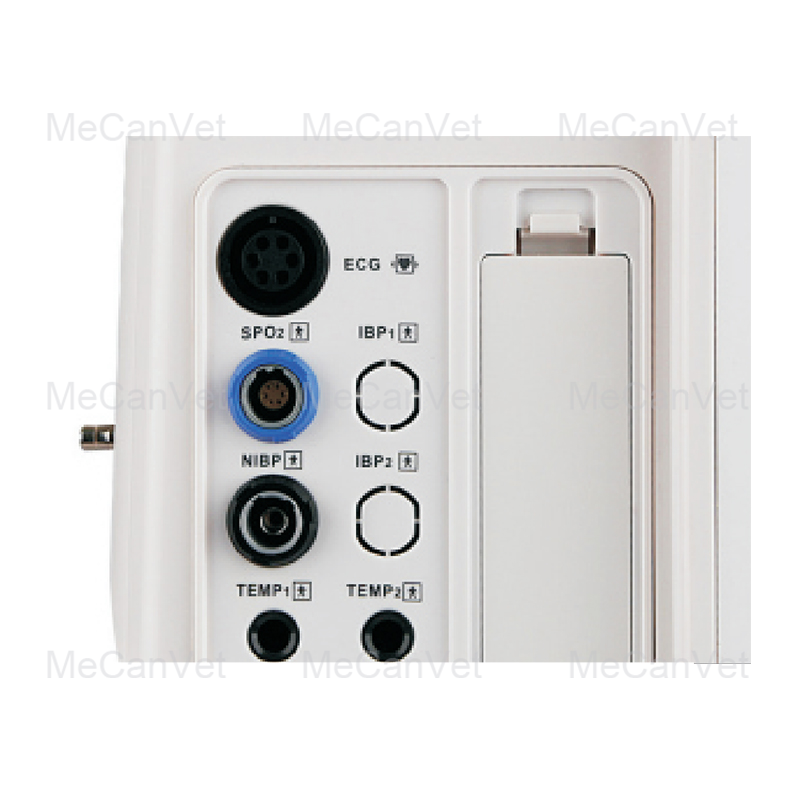

ECG Cable(with clip)SpO2 Probe(for tongue or ears)Temperature Probe (coelom)Veterinary Monitor jack
ECG

Lead : 3/5

5 lead mode: Ⅰ,Ⅱ,Ⅲ, aVR, aVL, aVF, V

3 ECG channels, 7 ECG waves in ECG full lead mode

HR:15-500BPM

Gain : X1/4,X1/2,X1,X2

Wave speed : 12.5/25/50 mm/s

Pacemaker

Arrythmia analysis

ST analysis

Filter mode: other, monitor, surgery

RESP

Impedance between RA-LL or RA-LA

RESP lead : Ⅰ/Ⅱ

Wave speed : 6.25, 12.5, 25mm/s

Apnea Alarm,5~120s

NIBP

Method : Oscillometry

For animal from <10kg to >20kg

Unit : mmHg ,Kpa

Mode: Manual,Auto,STAT

Measure and Alarm Range

SYS 40~280 mmHg

DIA 10 ~220 mmHg

MEAN 20 ~ 240 mmHg

Cuff  0 ~ 300mmHg

Static pressure: ±3mmHg

Automatic measurement interval time:

1 minute ~ 480 minutes

SPO2

SpO2,PR,PI

Accuracy:±2%( 70~100%)

Pulse Rate: 20~250bpm

Temperature

Channel : 2

Measure and Alarm Range0 - 50°C

Sensor type : rectal

Unit : °C


Accuracy : ±0.1°C

Recorder

3 channals

Storage

≥720 hours trend graph and trend table

2 houss wave review

200 alarm review

Alarm

3 levels alarm

All the alarm limit can be adjusted by user.

Unique Voice alarm

IBP

Sensor: OHMEDA or BD, EDWARD compatible

Channels: 2

Measuer Range: -50~ 360 (mmHg)

Accuracy(no sensor): ±2% or 1mmHg, use the greater

CO2

Measuer Range: 0%~13%

Accuracy:±2 mmHg @<5.0% CO2 (at ATPS)

Breath Rate: 3- 150 bpm

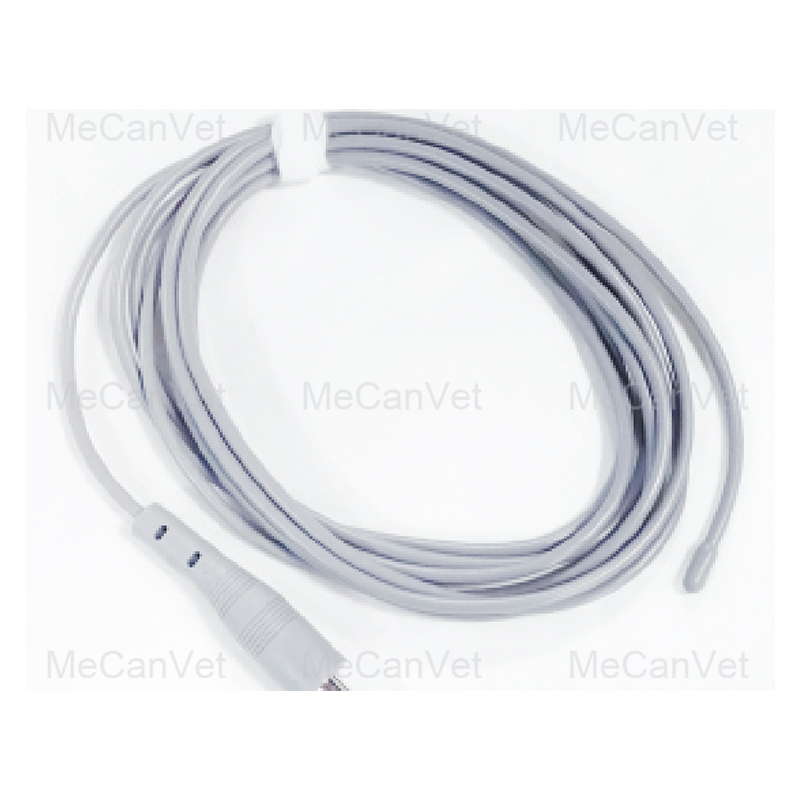

Temperature Probe (coelom)

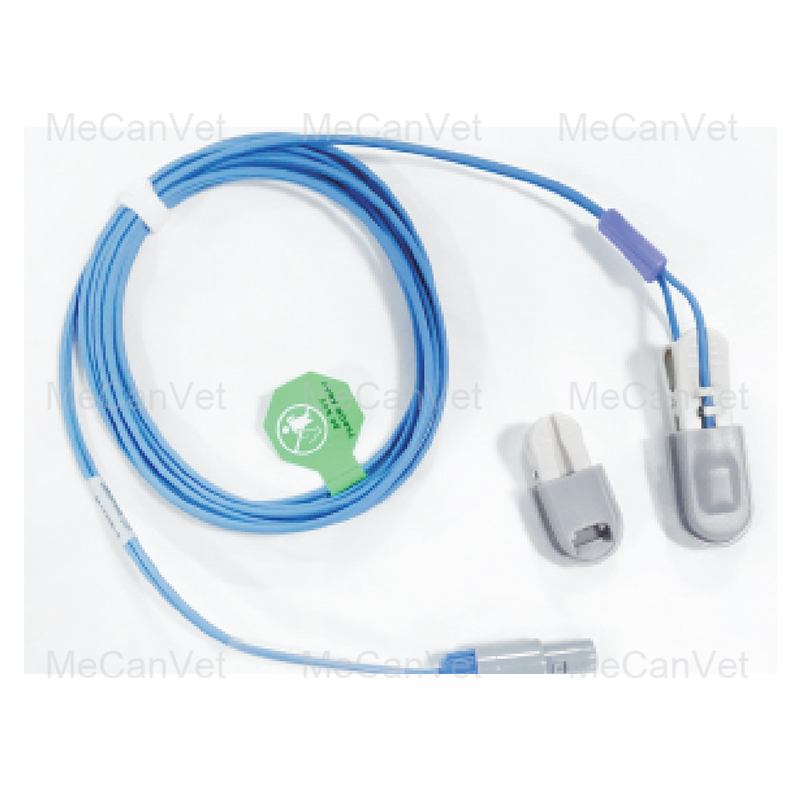

SpO2 Probe (for tongue or ears)

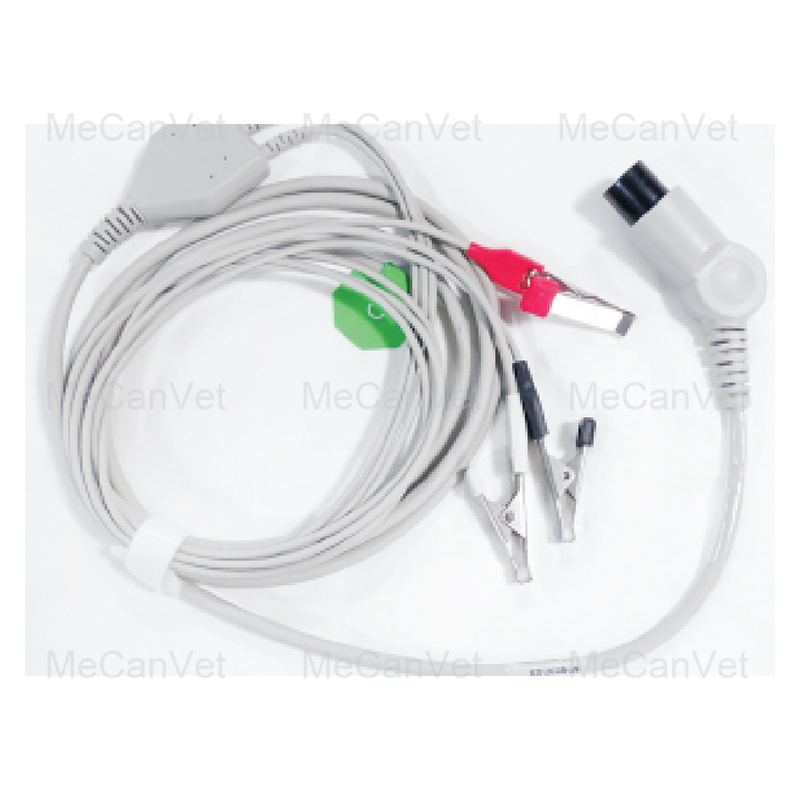

ECG Cable (with clip)

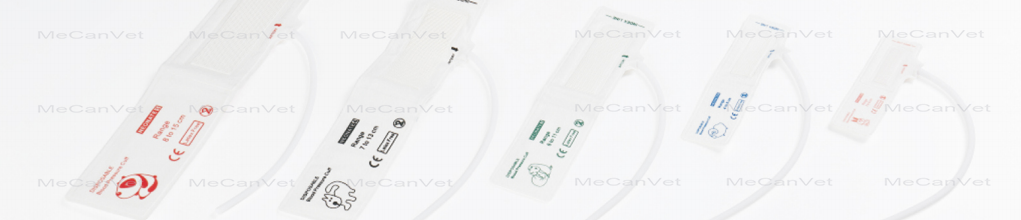

NIBP Cuffs (5 different sizes)

Standard:

ECG, Respiration, NIBP, SpO2, Pulse Rate, Temperature

Optional:

Mainstream/Sidestream EtCO2,

GAS, 18P-1/18P-2, Thermal Recorder,

Wall Mount, Trolly, CMS

NIBP Cuffs(5 different sizes)
